How to install Ubuntu Studio in Windows using VirtualBox – a complete walkthrough

by Ross McKillop on May 13, 2007

Linux Windows

This tutorial will take you every single step of the way through installing Ubuntu Studio using VirtualBox for Windows. In other words, even your parents should be able to follow along.

1. Who this tutorial is for
2. Background
3. Setting up VirtualBox for Ubuntu
4. Installing Ubuntu Studio
5. Tidying up (adding sound and a CD/DVD-ROM)


Who this tutorial is for

This tutorial is for anyone with a PC running Windows (Windows 2000 SP3, XP or Server 2003) who is curious about Linux – specifically Ubuntu Studio, and has about an hour to kill (not including the time it takes to download Ubuntu). The great thing about installing Ubuntu Studio using VirtualBox is that if you decide you don’t like it, you can uninstall VirtualBox, delete its files and folders, and its like it never happened. You don’t have to worry about partitioning your hard drive (which when done incorrectly can delete your valuable files). That, and all of the software involved is entirely free.

The steps and screenshots used for this tutorial are specific to VirtualBox 1.3.8 and Windows XP SP2. With that said, they will be nearly identical if you have 2000, XP SP1 etc.

Background

Ubuntu Studio is a free, open source Linux-based operating system. It’s referred to as the “multimedia creation flavor of Ubuntu”. Ubuntu Studio is aimed at the GNU/Linux audio, video and graphic enthusiast as well as professional. Their aim is to make it more accessible for new users to get into the tools that GNU/Linux has to offer for multimedia creation/production. For more information on Ubuntu Studio, visit https://wiki.ubuntu.com/UbuntuStudio.

VirtualBox is a general-purpose full virtualizer for x86 hardware. Targeted at server, desktop and embedded use, it is now the only professional-quality virtualization solution that is also Open Source Software. Download VirtualBox here.


Before you start – make sure to download Ubuntu from http://mirror.imbrandon.com/ubuntustudio/7.04/. The file you’ll want to download (as of 5/13/07) is ubuntustudio-7.04-alternate-i386.iso (use the bittorrent link if possible to help the mirror conserve bandwidth). Also, make sure VirtualBox is installed.

Setting up VirtualBox for Ubuntu

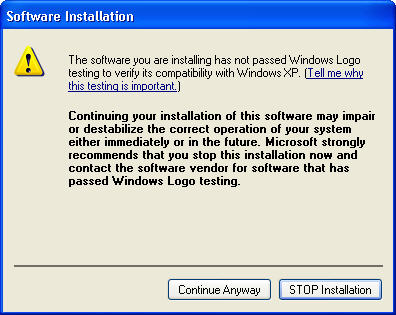

  1. During the installation of VirtualBox, don’t be surprised if you get a few “are you sure you want to do this” messages. Just click Continue Anyway when they pop up.

  2. click to enlarge

  3. Launch VirtualBox and click the New button.

  4. click to enlarge

  5. The Wizard will open – click Next to continue.

  6. click to enlarge

  7. Give your new virtual machine a name – it doesn’t matter what you call it, but something descriptive is a good idea. From the OS Type select Linux 2.6. Click Next to continue.

  8. click to enlarge

  9. Select the amount of RAM you want to dedicate to Ubuntu Studio. The amount you select should be at least 128MB, but you probably won’t want to select more than half of your actual PC’s RAM. If you have 512MB of RAM, select 256MB (give or take) for your virutal machine. Click Next to continue.

  10. click to enlarge

  11. Click the New… button to create a virtual hard drive.

  12. click to enlarge

  13. Click Next

  14. click to enlarge

  15. Review the differences between a dynamically expanding image and a fixed-size image. Dynamically expanding image is a good choice. Again, click Next to continue.

  16. click to enlarge

  17. Give the Image File Name a name – again, it doesn’t matter what you name it, but something descriptive is always good. Then use the slider to determine how large to make your virtual hard drive. VirtualBox suggests at least 8GB, but you can get away with less (but going below 2 or 3GB isn’t a great idea). When you’ve selected an amount, click Next.

  18. click to enlarge

  19. Review the settings and click Finish when you’re ready.

  20. click to enlarge

  21. Now that your virtual hard disk is set up, click Next to continue.

  22. click to enlarge

  23. The wizard is now done. Click Finish.

  24. click to enlarge

  25. Back in the main VirtualBox window, click Settings

  26. click to enlarge

  27. Select the CD/DVD-ROM entry from the left navigation. Place a check in the box labeled Mount CD/DVD Drive, and then select ISO Image File.

  28. click to enlarge

  29. A Virtual Disk Manager will appear. Click the Add button.

  30. click to enlarge

  31. Navigate to your Ubuntu Studio ISO file, select it, and then click Open

  32. click to enlarge

  33. Once the ISO has been added, click Select.

  34. click to enlarge

  35. Your CD/DVD-ROM screen should look similar to the screenshot below. Click OK when you’re ready.

  36. click to enlarge

Installing Ubuntu Studio

  1. Now it’s time to install Ubuntu Studio. Click the Start button to begin.

  2. click to enlarge

  3. You’ll probably be given a ‘warning’ that explains how to change the cursor and keyboard focus from the virtual machine to Windows. By default, use the right control (ctrl) key. Click OK.

  4. click to enlarge

  5. Watch as VirtualBox loads Ubuntu Studio…

  6. click to enlarge

  7. Click inside the VirtualBox window, make sure that Install Ubuntu Studio is highlighted, and hit Enter on your keyboard.

  8. click to enlarge

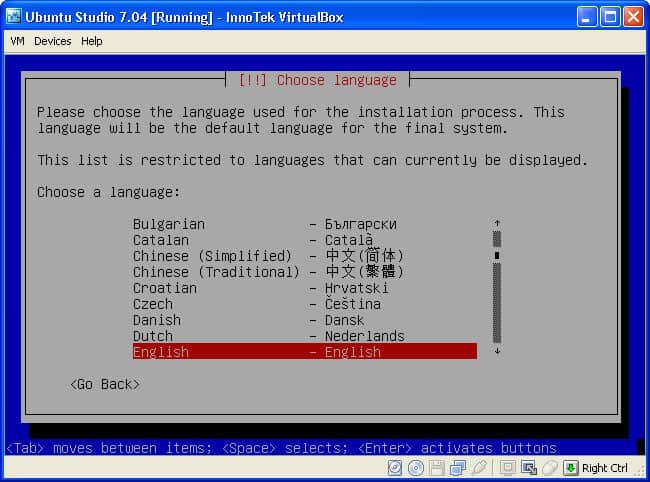

  9. Use the up and down arrow keys on your keyboard to select your language, and hit Enter when you’ve made your choice.

  10. click to enlarge

  11. Again, use the up and down arrow keys to select your Country, and hit Enter to continue.

  12. click to enlarge

  13. Use the left and right arrow keys to select Yes to auto-detect your keyboard layout. As always, hit Enter to continue.

  14. click to enlarge

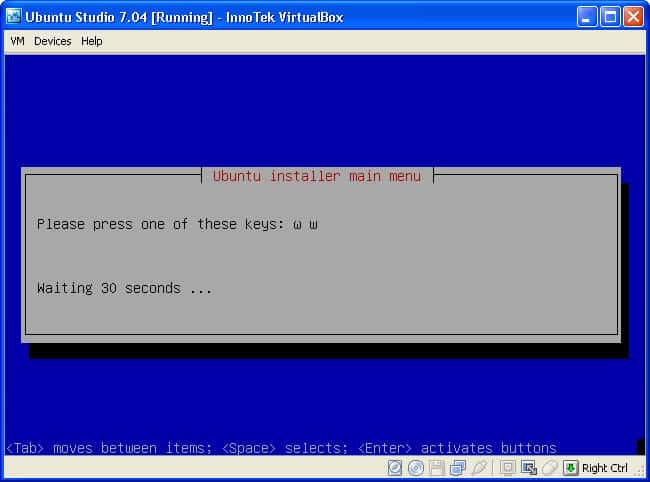

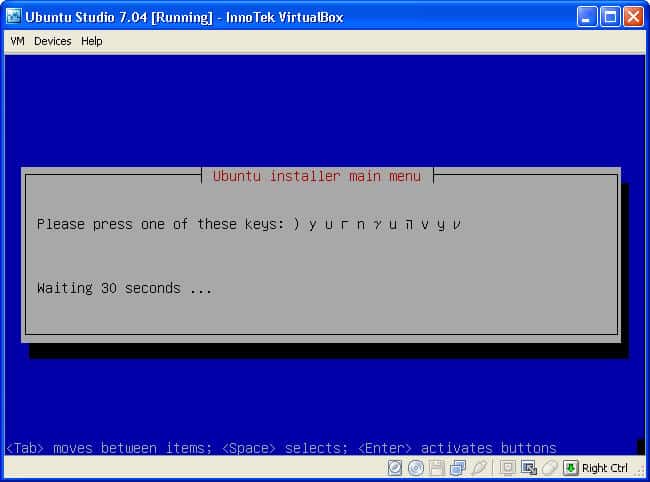

  15. You’ll be prompted to press one of several keys on your keyboard. Click the appropriate key.

  16. click to enlarge

  17. Similar to the previous step, click the appropriate key on your keyboard.

  18. click to enlarge

  19. Use the left and right arrow keys to select Yes or No regarding the keys on your keyboard. Hint: if you’re using a US keyboard, select No. You’ll be prompted to repeat this step with various “keys” a number of times. Again, if you’re using a US keyboard, select No every time.

  20. click to enlarge

  21. Assuming Ubuntu detected the correct keyboard, make sure Continue is selected and hit Enter.

  22. click to enlarge

  23. Watch as Ubuntu detects your hardware..

  24. click to enlarge

  25. and loads additional components…

  26. click to enlarge

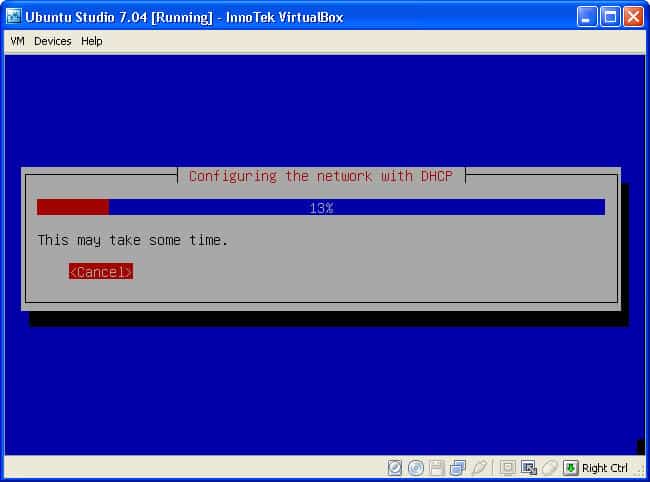

  27. and configures your network.

  28. click to enlarge

  29. Now enter a Hostname for your virtual machine. As usual, a short but descriptive name is a good idea.

  30. click to enlarge

  31. Once again Ubuntu will detect your hardware.

  32. click to enlarge

  33. Then it will start the partitioner.

  34. click to enlarge

  35. Select Guided – use entire disk and hit Enter.

  36. click to enlarge

  37. Hit Enter again.

  38. click to enlarge

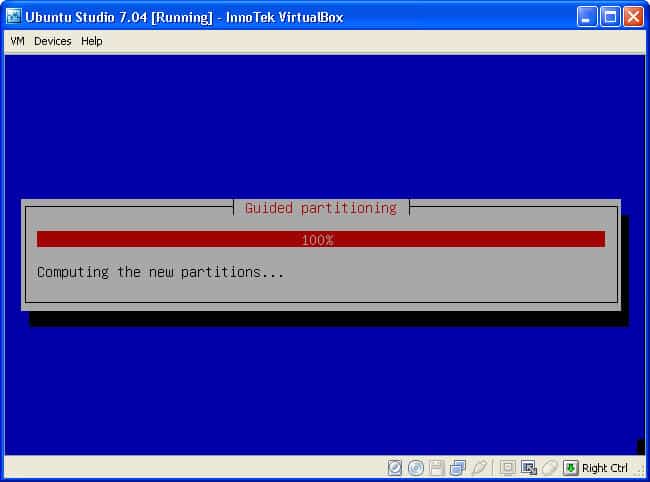

  39. Watch as the partitioning finishes up.

  40. click to enlarge

  41. Select Yes and then hit – you guessed it – Enter.

  42. click to enlarge

  43. Your newly created virtual partitions will be formatted.

  44. click to enlarge

  45. Use the up and down arrow keys to select your time zone. Hit Enter when you’ve selected the appropriate one.

  46. click to enlarge

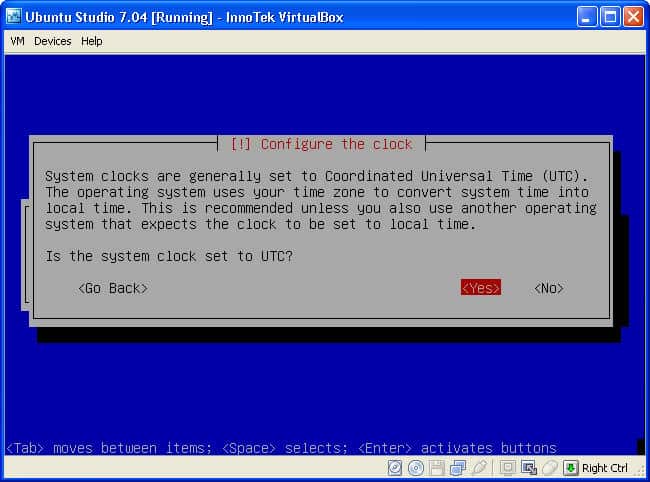

  47. Select Yes, hit Enter.

  48. click to enlarge

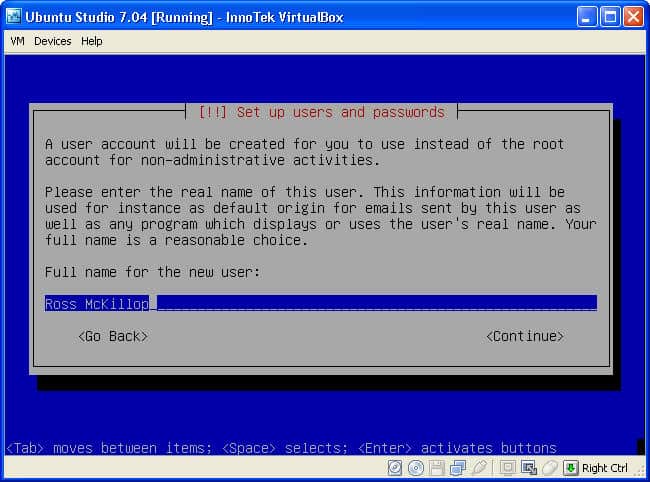

  49. Enter your name and hit Enter.

  50. click to enlarge

  51. Select a user name. This is the login/user name that you’ll use in Ubuntu. Note that user names can contain numbers (though it can’t start with one), and all letters must be lower case.

  52. click to enlarge

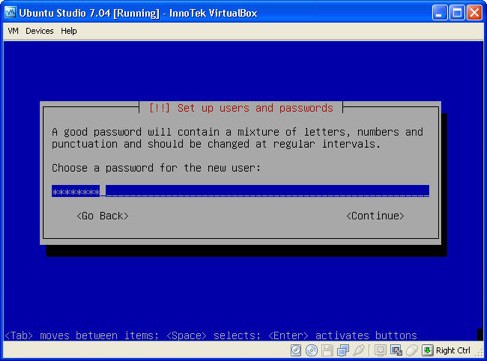

  53. Enter the password you want to use to login to Ubuntu.

  54. click to enlarge

  55. Re-enter the password.

  56. click to enlarge

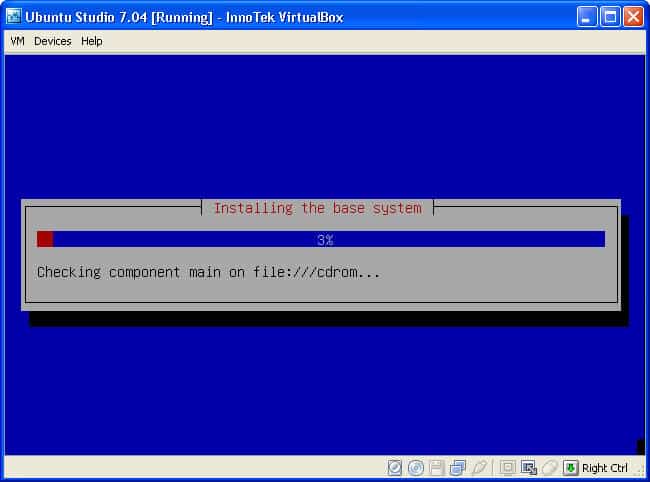

  57. Ubuntu Studio will begin installing the base system. Go grab a cup of coffee. This will take a while.

  58. click to enlarge

  59. Review the packages that Ubuntu Studio can install.

  60. click to enlarge

  61. Select the packages you wish to have installed. Use the up and down arrow keys to move through the list, and use the Space Bar to select a package. Hit Enter after you’ve selected the packages you want installed.

  62. click to enlarge

  63. Grab yourself another cup of coffee. Again, this can take quite a while, but it depends on how many of the software packages you opted to install.

  64. click to enlarge

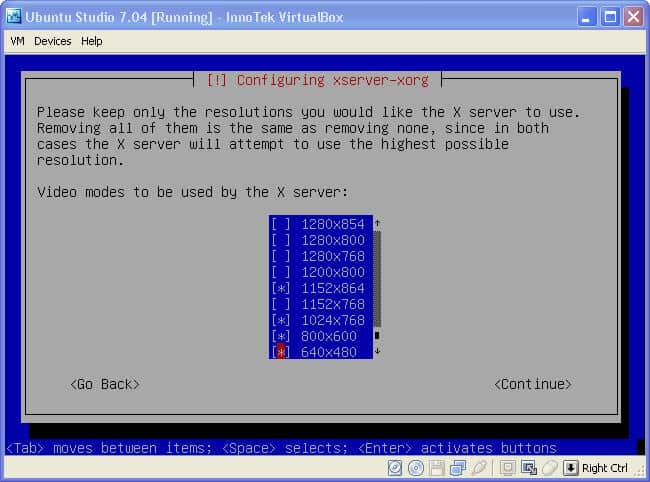

  65. Now you’ll select the resolutions you want available to Ubuntu studio.

  66. click to enlarge

  67. Use the up and down arrow keys to navigate through the list, and the Space Bar to select them. Keep in mind – if your video card and monitor don’t support a specific resolution, don’t select it.

  68. click to enlarge

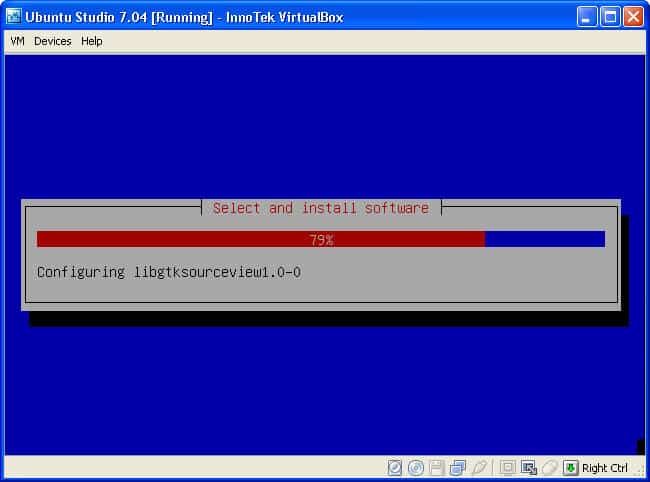

  69. Watch as more software is installed.

  70. click to enlarge

  71. And finally, it’s done. Ignore the message about removing media from your CD-ROM, but if you have a floppy in your floppy drive, take it out. Select Continue and hit Enter.

  72. click to enlarge

  73. Watch as the pretty Ubuntu Studio boot screen loads.

  74. click to enlarge

  75. Enter your user name and hit Enter.

  76. click to enlarge

  77. Enter your password and hit Enter.

  78. click to enlarge

  79. To enter Full Screen mode, select VM from the top menu, and then Fullscreen Mode from the drop-down list. The first time you enter fullscreen mode, you’ll be given a ‘warning’ that explains how to exit and return to ‘windowed’ view.
  80. Ta-da! Have fun with Ubuntu Studio!

  81. click to enlarge

Tidying up (adding sound and a CD/DVD-ROM)

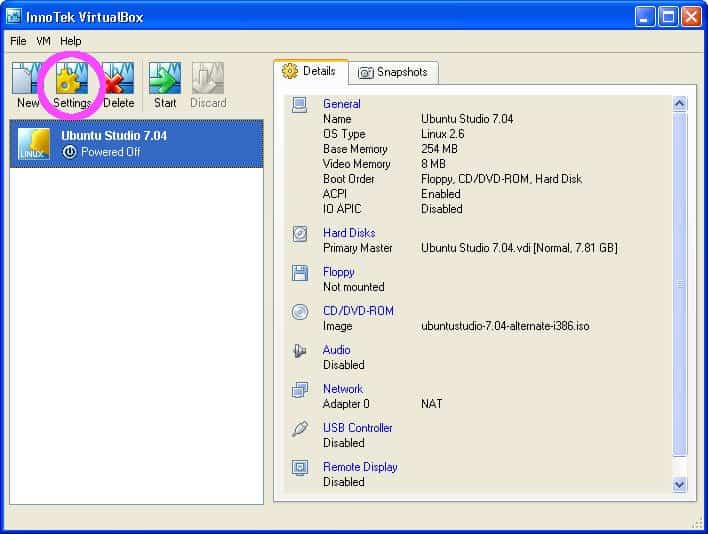

  1. After you’ve powered Ubuntu Studio off, select Settings from the top menu.

  2. click to enlarge

  3. Select the Audio entry from the left navigation. Place a check in the box labeled Enable Audio, and choose Windows DirectSound from the drop-down list.

  4. click to enlarge

  5. Next select CD/DVD-ROM from the left navigation, and change the Mount CD/DVD Drive from ISO Image File to Host CD/DVD Drive.

  6. click to enlarge

  7. The next time you start Ubuntu Studio, sound should work and you’ll have access to your CD/DVD-ROM.
