How To Add a Flash Drive to the Xbox 360 Slim 4GB Model for Extra Storage

If you enjoy gaming and are on a budget, a good solution is the $199 Xbox 360 Slim. However one thing that is lacking is hard drive space – only a 4 GB internal drive. Here we look at getting more space by adding a USB flash drive.

Note: You can add an external drive to the Xbox 360 Slim 4 GB model, however, you can only use up to 16 GB of the space. So, if you were to add a 160 GB external drive for example, you’ll only be able to use 16 GB of it for Xbox storage.

1. For this example we’re going to hook up a 16 GB flash drive since that’s the limit. Insert the flash drive into an available USB port on the back of the Xbox Slim. Turn on the Xbox and from the main menu, navigate to My Xbox >> System Settings.

sshot-2011-02-12-[20-31-28]

2. Then in System Settings select Memory.

sshot-2011-02-12-[20-32-46]

3. In Storage Devices select USB Storage Device.

sshot-2011-02-12-[20-33-26]

4. Xbox will need to configure the USB flash drive so it’s compatible for data storage. Select Configure Now.

sshot-2011-02-12-[20-34-50]

5. On the Configure Device screen select Yes when it asks if you want to remove all content and configure it for Xbox storage.

sshot-2011-02-12-[20-35-49]

6. Then wait while your Xbox tests and configures the flash drive. In our tests it took under a minute.

sshot-2011-02-12-[20-36-46]

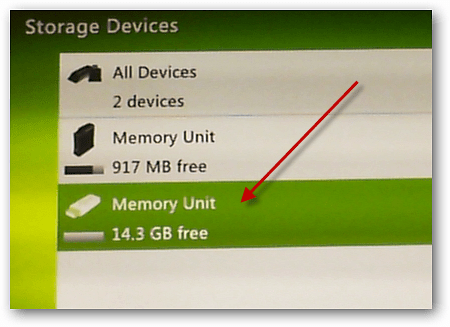

7. After it’s done go back to your flash drive or Memory Unit as it’s called in the menu.

sshot-2011-02-12-[20-37-25]

8. Now here you can see it’s ready to use to store data.

sshot-2011-02-12-[20-37-47]

9. A quick test to make sure it works is to start up a game from your collection. For example here we started playing BioShock, and when the game started it asked where to store game progress, and were able to select the USB flash drive.

sshot-2011-02-12-[20-38-11]

10. After playing it for a bit, we created a new save point, and when you go back in to look at your drive, you should see the that it was stored on the flash drive.

sshot-2011-02-12-[20-38-42]

sshot-2011-02-12-[20-39-05]

Using a flash drive versus an external hard drive is a good idea to get extra storage space for the Xbox 360 Slim 4 GB model. This way you won’t need to mess with more wires and an extra piece of hardware cluttering up your gaming area. You can use an external hard drive as well, but just keep in mind that you’ll only be able to use 16 GB of space.

Although I am sure there is a hack out there somewhere to get around that limitation. If you know of any, let us know in the comments!

{ 6 comments… add one }
  • Reshaad July 25, 2011, 8:47 am

    Is there a way to flash the xbox360 4gig using a usb/flash drive, please let me know.
    Thanks

  • texas warlock September 22, 2011, 1:04 pm

    What kind of flash drive did you use. I’m currently looking for one and I don’t want to waste money on trying to format one that won’t work.

  • sami January 5, 2012, 9:55 pm

    i have a samsung usb harddrive 500gb will it work on it for more space??or is it gonna aplly only 16 gb?? please reply in email

  • Gowtham April 4, 2012, 11:30 am

    Xbox automatically formats it just look for something windows compatible and configure it
    just remember you can only use that for xbox and not cpu’s or anything else

  • Chrisa7 August 12, 2012, 11:48 pm

    I bought a 16 g sandisk thumb drive and it works great. Will it accept another drive at the same time?

  • Handfist February 28, 2013, 11:51 am

    I purchased a Dane Elec 16 gig flash drive, this flash drive would not configure at all…. so I did some digging around and found out that if I get a 8 gig dane elec flash drive it will work. so I refunded the 16gig and got the 8 gig ($14 at Gamestop)
    Inserted it in my xbox and bam, it configured to the xbox and then I moved my BOPS 2 Revolution to the flash drive with in 2 minutes, tried the Revolution map pack and it worked with out any errors. I also have noticed that some flash drives loose space, not this one, after configuring I lost 512k out of 8 gig, not bad at all.

    I don’t know why the 16 gig did not work, I know the flash drive cant be lower then 1 gig. But what I did was just buy two Dane elec 8 gigs. I only play a few games, my xbox is the 4gig model. so using my flash drive I freed up all my system storage.

    hope this helped
